Description

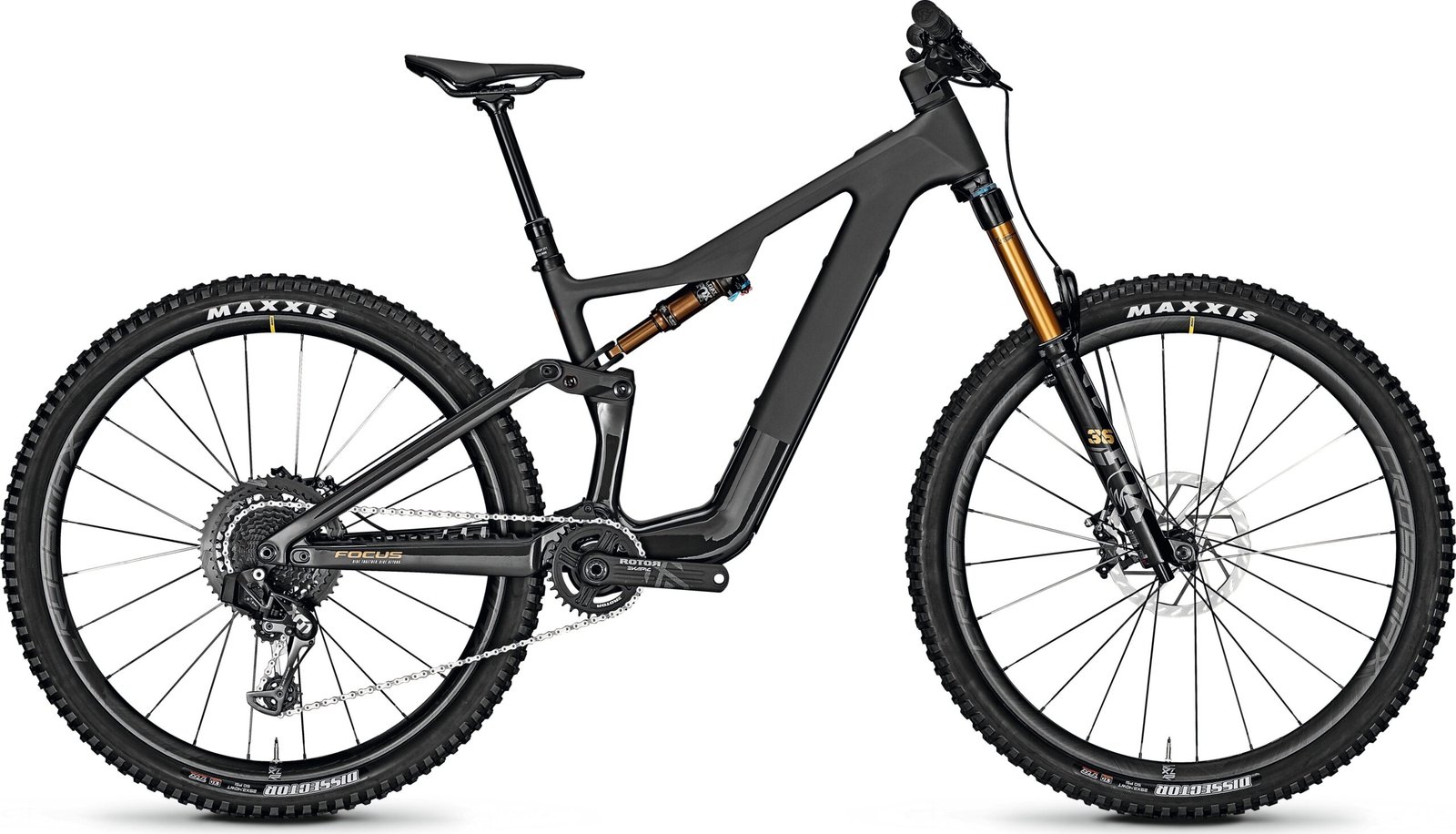

Introducing the JAM² SL 9.0: Pushing eMTB Boundaries
Unleash the power of the JAM² SL 9.0, a true embodiment of lightweight eMTB innovation.
Crafted with a MAX carbon frame, featuring FAZUA RIDE 60 E-Drive & 430 Wh Battery, this bike redefines the eMTB experience.
•
Carbon Mastery: MAX carbon frame blends feather-light construction with uncompromising stiffness.
Semi-integrated shock design ensures agility without compromising stand-over height.
Integrated motor and battery in the down tube merge technology with aesthetics.
Carbon handlebar and wheels enhance performance.
•
Empowered Performance: FAZUA Ride 60 drive unit delivers natural ride feel with 60 Nm torque and 450 W power.
Conquer climbs effortlessly with a boost function.
430 Wh battery extends rides, with an optional 210 Wh range extender.
Customize ride dynamics via the FAZUA App’s motor support settings.
•
Adaptive Design: Tailor your ride with adjustable head angle and chainstay length.
Opt for agility (65.5° head angle) or downhill prowess (64.5° head angle).
FLIP CHIPs transform stability and agility.
F.O.L.D. design minimizes weight, enhances control, and reduces brake influence for a confident ride.
SPECIFICATION
DETAILS
FRAME
MAX Carbon technology, 150mm F.O.L.D.
GEN3 kinematics, 148×12 thru axle, internal cable routing, Post Mount 180 mm
FORK
FOX 36 Float Factory 29, Grip 2, 110 x 15 mm, 44 mm rake
TRAVEL OF SUSPENSION FORK
160 mm
SHOCK
FOX Float DPS Factory, 3-position Evol LV, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing
MOTOR
Fazua Ride 60, 60 Nm, 430 W max.
BATTERY WATT-HOURS
430 Wh
BATTERY AMPERE HOURS
10 Ah
DISPLAY
Fazua LED Hub + Ring Control
SHIFTER
SRAM AXS Rocker, 12-speed
REAR DERAILLEUR
SRAM XO1 Eagle AXS, 12-speed
SPROCKET
e*thirteen Helix Plus
CHAIN
SRAM X01 Eagle, 12-Speed
CRANKSET
Rotor eKAPIC RF Link 29
TRANSMISSION OF DRIVE
front: 32, rear: 10-52
BOTTOM BRACKET
Integrated in Drive Unit
HANDLEBAR
RaceFace Next R, carbon, 800 mm, rise: 25 mm, backsweep: 8°, 35.0 mm
STEM
FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
HEADSET
ACROS ZS56/ZS56 (ICR), FOCUS C.I.S.
Integrated, 1.5/1.5″ angle headset
SADDLE
fi’zi:k Taiga
SEATPOST
Post Moderne dropper post PM-MT171, 31.6 mm
BRAKE CALIPER
SRAM G2 Ultimate
BRAKE LEVER
SRAM G2 Ultimate
BRAKE
Disc
WHEELSET
Mavic Crossmax X LR 29, carbon, 622-30, 15×110 mm / 12×148 mm
TIRES
Maxxis Dissector, 2.4 Exo, 61-622
GEARS
12
BIKE WEIGHT INCL.
BATTERY IN KG.
17.9
SIZE
39, 42, 44, 46
