Description

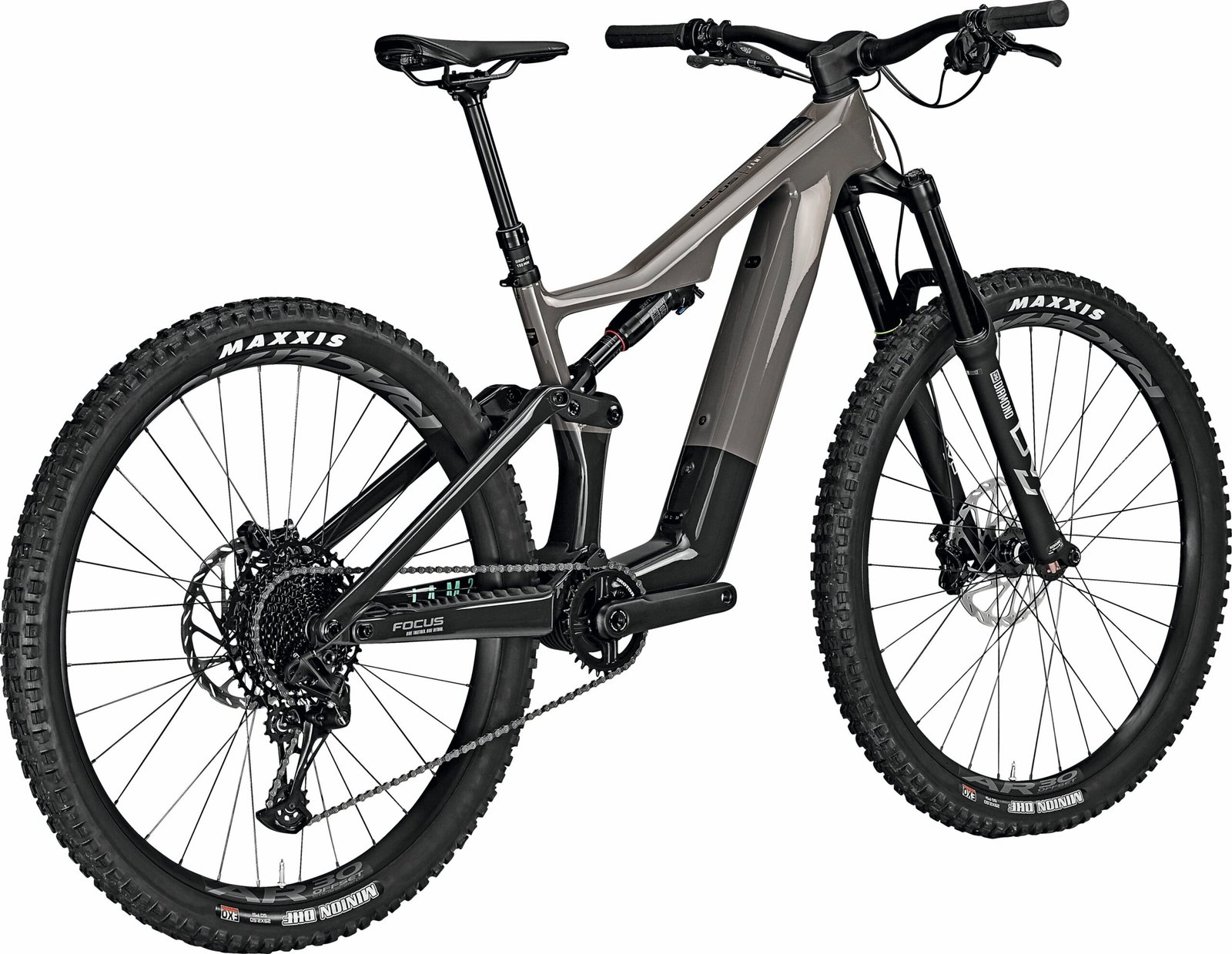

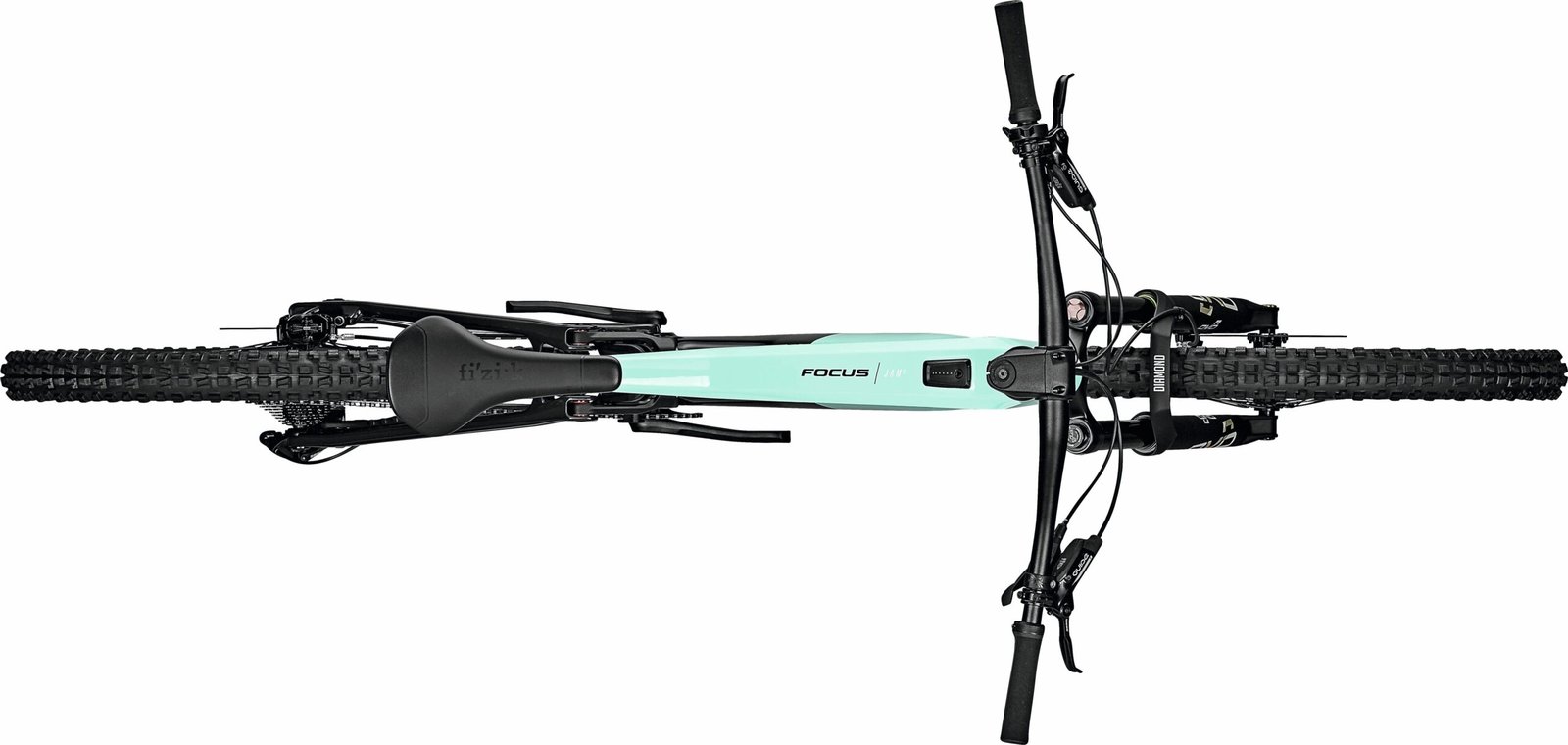

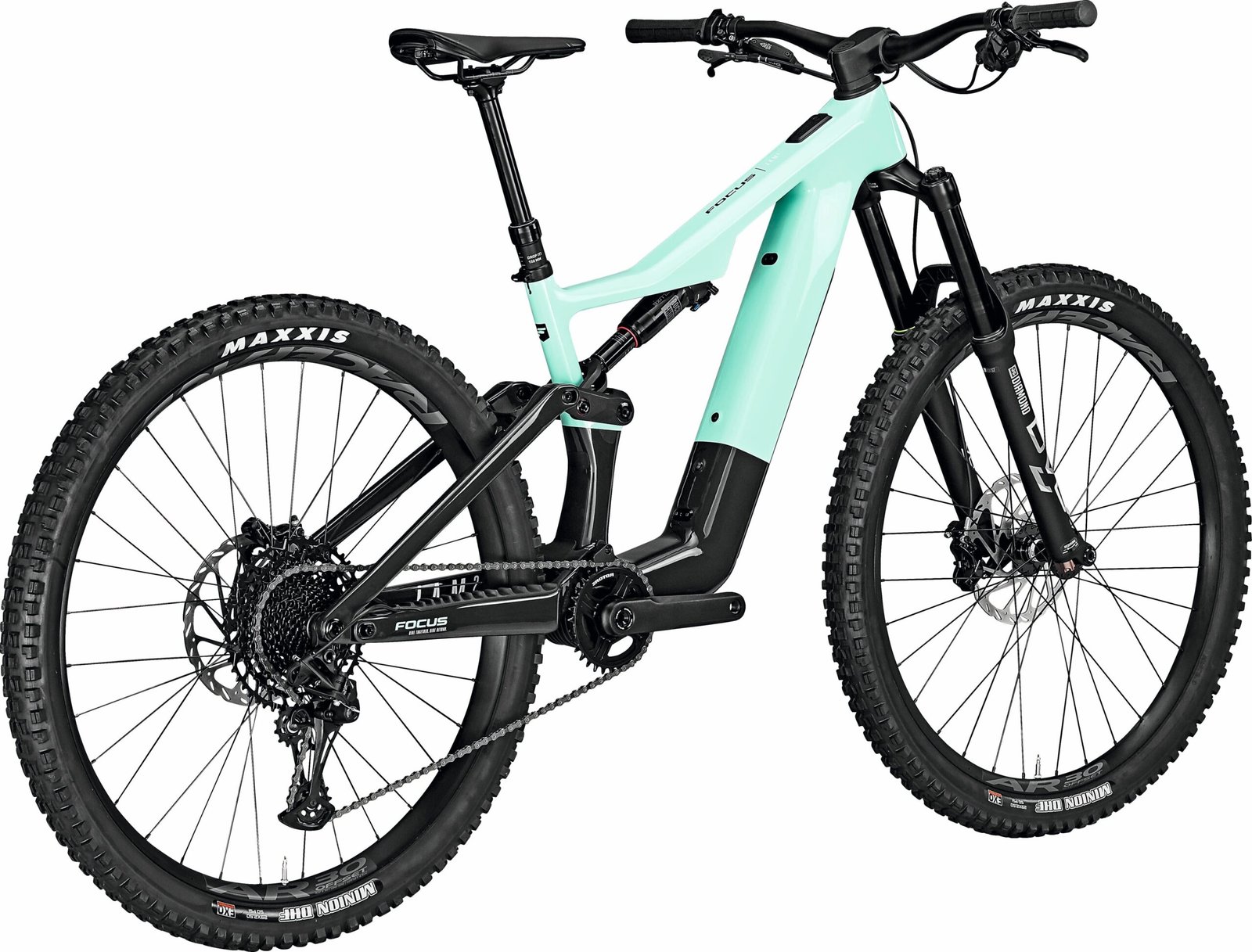

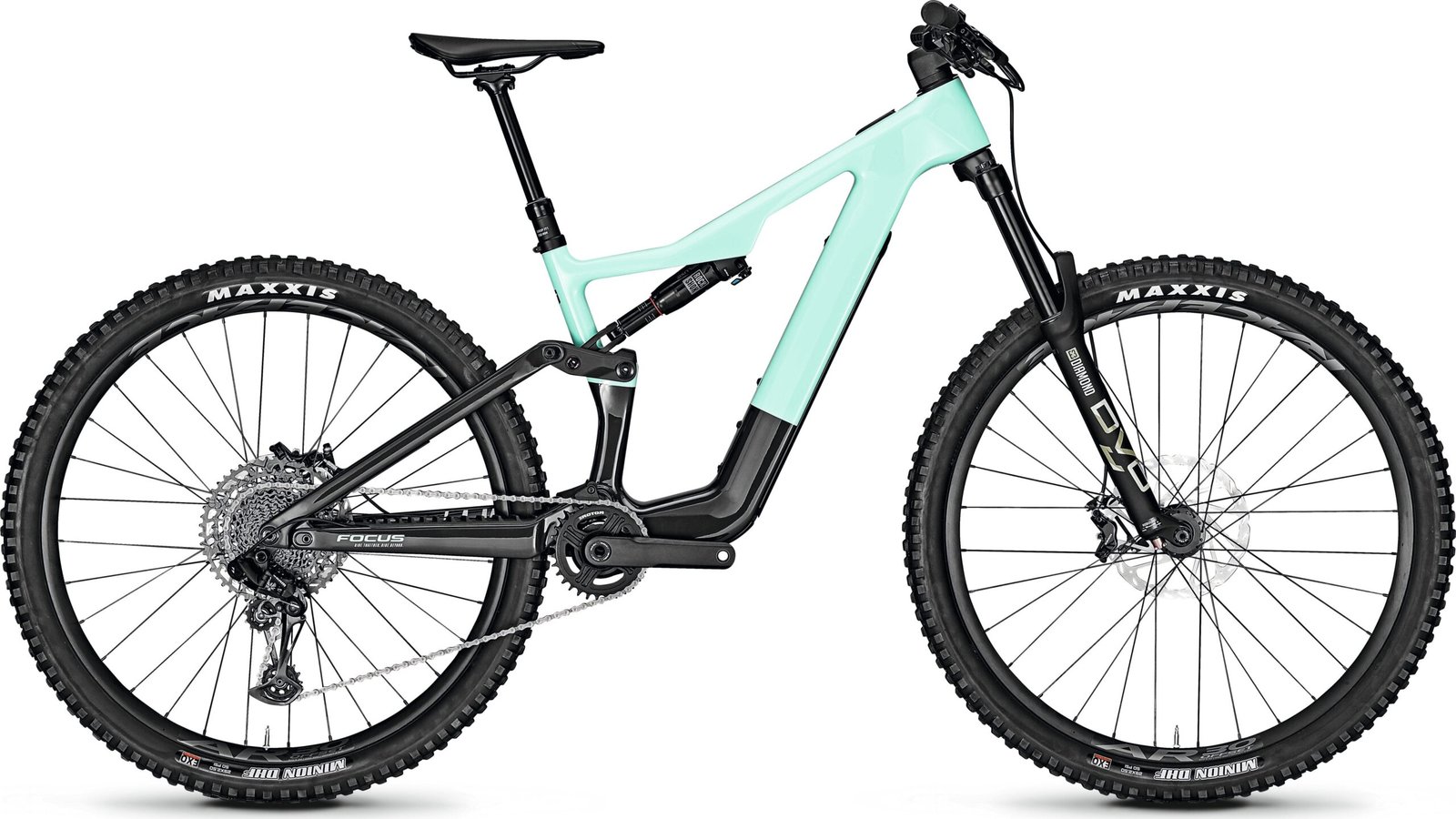

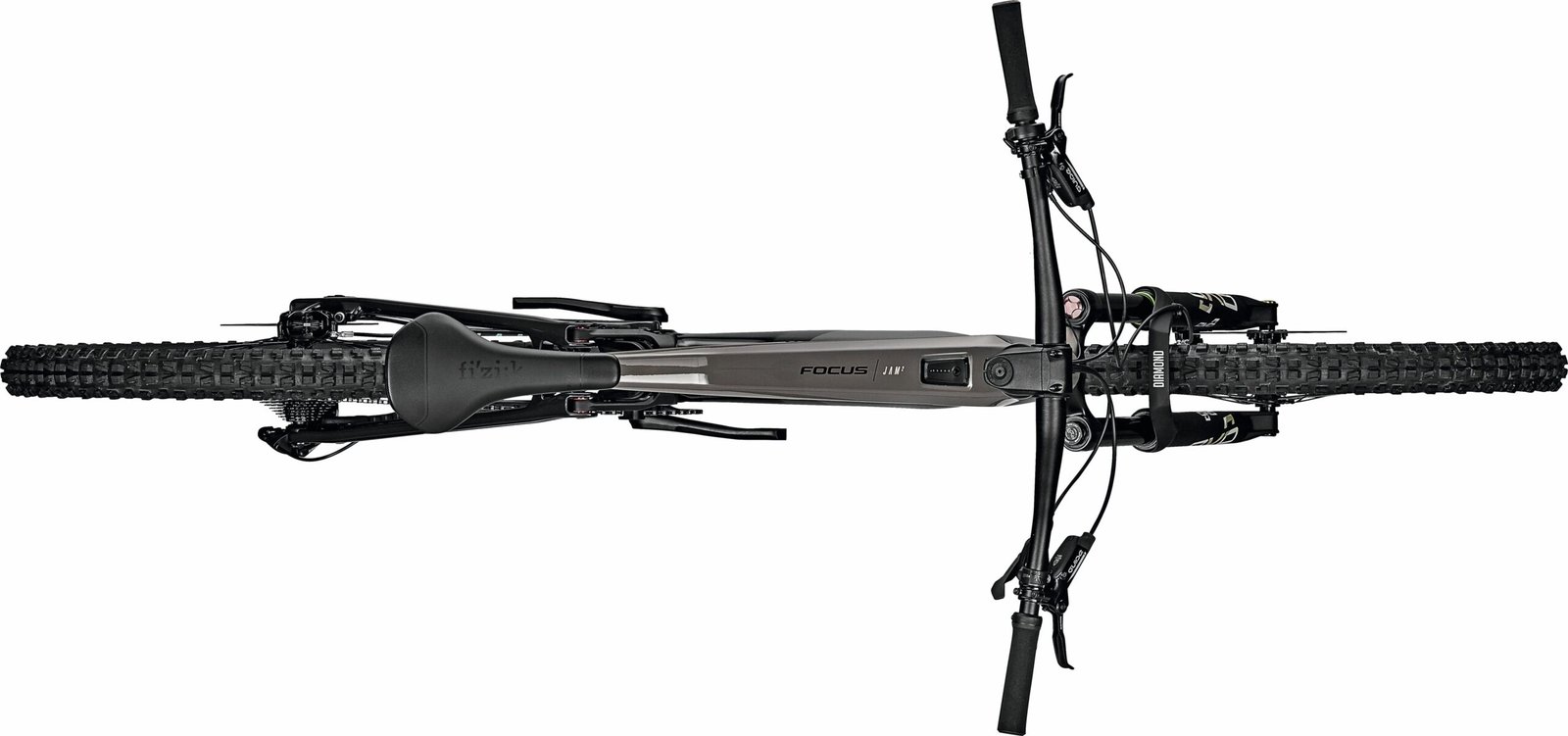

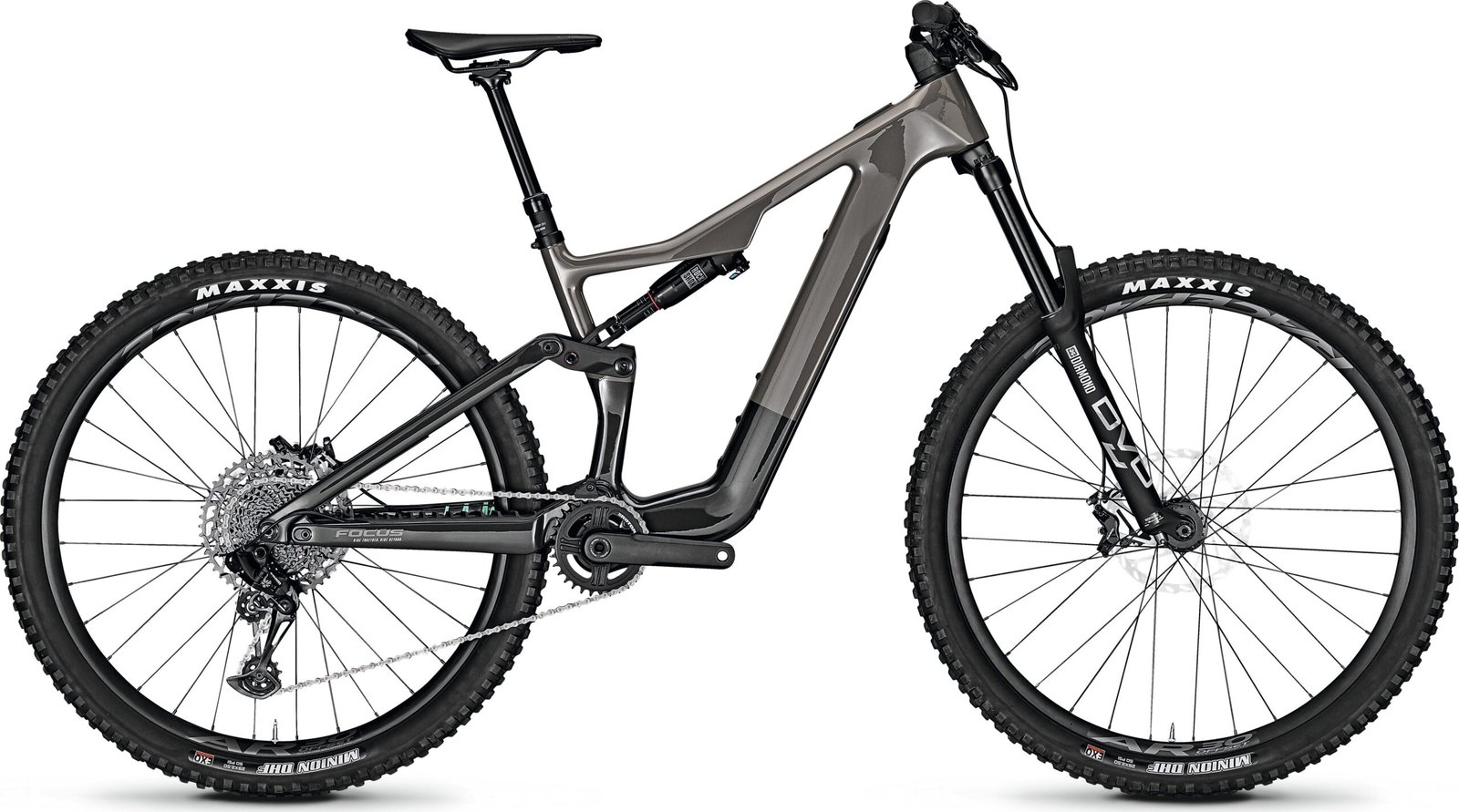

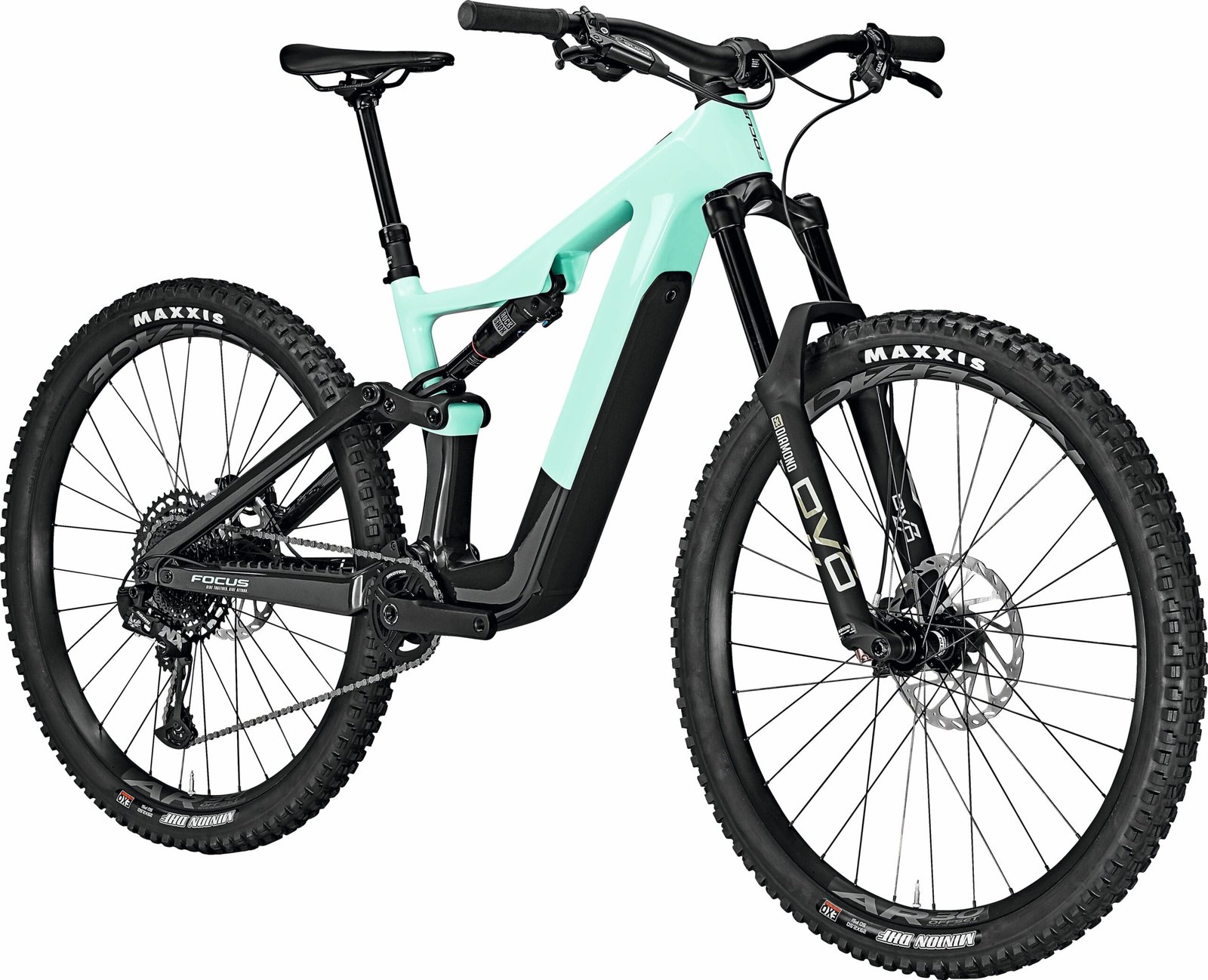

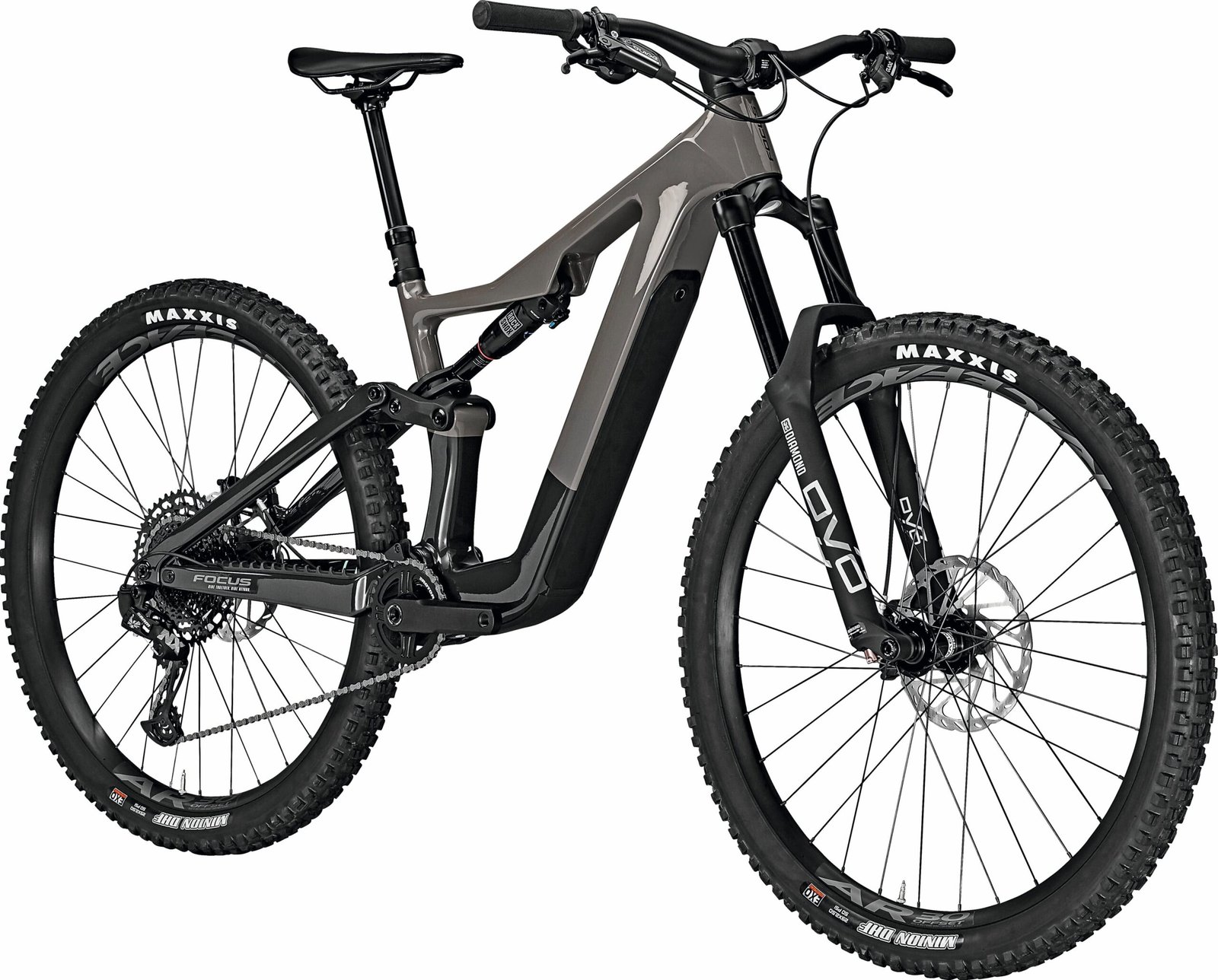

Introducing the JAM² SL 8.7 – a testament to the fusion of lightweight design and cutting-edge technology in the world of e-mountain biking.
Crafted with a featherweight carbon frame and propelled by the FAZUA Ride 60 e-drive, boasting 60 Nm torque and a robust 430 Wh battery.
Equipped with a 160mm DVO Diamond E-Bike suspension fork and a 150mm RockShox Deluxe Select+ rear shock, complemented by the F.O.L.D. kinematics for impeccable trail performance.
• Lightweight carbon frame powered by the FAZUA Ride 60 e-drive for agile prowess. • DVO Diamond E-Bike fork with 160mm travel & RockShox Deluxe Select+ rear shock with F.O.L.D. kinematics. • Trail-ready SRAM NX Eagle 1×12 shifting with seamless C.I.S. cable routing for a refined ride.
Embrace the harmonious blend of traditional biking and cutting-edge technology with the JAM² SL 8.7, a nimble e-mountain bike that doesn’t compromise on performance or style.
SPECIFICATION
FRAME MATERIAL
Carbon
FRAME
Carbon technology frame, 150mm F.O.L.D.
GEN3 kinematics, 148×12 thru axle, internal cable routing, Post Mount 180 mm
FORK
DVO Diamond E3, 110×15 mm, 44 mm rake
TRAVEL OF SUSPENSION FORK
160 mm
SHOCK
Rock Shox Deluxe Select+, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing
MOTOR
Fazua Ride 60, 60 Nm, 430 W max.
BATTERY WATT-HOURS
430 Wh
BATTERY AMPERE HOURS
10 Ah
DISPLAY
Fazua LED Hub + Ring Control
SHIFTER
SRAM SX Eagle, 12-speed
REAR DERAILLEUR
SRAM NX Eagle, 12-speed
SPROCKET
SRAM NX Eagle, 12-speed
CHAIN
SRAM SX Eagle, 12-speed
CRANKSET
Samox EC40 ISIS
TRANSMISSION OF DRIVE
front: 32, rear: 11-50
BOTTOM BRACKET
Integrated in Drive Unit
HANDLEBAR
Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
STEM
FOCUS C.I.S.
2.0 MTB integrated, 35 mm, aluminium
HEADSET
ACROS ZS56/ZS56 (ICR), FOCUS C.I.S.
Integrated, 1.5/1.5″ angle headset
SADDLE
fi’zi:k Taiga
SEATPOST
Post Moderne dropper post PM-MT171, 31.6 mm
BRAKE CALIPER
SRAM DB8, 4-piston
BRAKE LEVER
SRAM DB8
BRAKE
Disc
RIMS
RaceFace AR30 Offset
REAR HUB
Novatec D462, 12×148 mm
FRONT HUB
Novatec D041, 15×110 mm thru axle, Novatec D041, 15×110 mm
TIRES
Maxxis Minion DHF, EXO, 63-622
GEARS
12
BIKE WEIGHT INCL.
BATTERY KG.
20.2 kg
SIZE
44, 39, 42, 46.
Product specifications
| Specification | Details |
|---|---|
| Colour | Poolblue – Carbon Raw, Moonstonegrey – Carbon Raw |
| Size | Small, Medium, Large, X-Large |
| Specification | Crafted with a featherweight carbon frame and propelled by the FAZUA Ride 60 e-drive, boasting 60 Nm torque and a robust 430 Wh battery. |
| Specification | Equipped with a 160mm DVO Diamond E-Bike suspension fork and a 150mm RockShox Deluxe Select+ rear shock, complemented by the F.O.L.D. kinematics for impeccable trail performance. |
| Feature | Lightweight carbon frame powered by the FAZUA Ride 60 e-drive for agile prowess. • DVO Diamond E-Bike fork with 160mm travel & RockShox Deluxe Select+ rear shock with F.O.L.D. kinematics. • Trail-ready SRAM NX Eagle 1×12 shifting with seamless C.I.S. cable routing for a refined ride. |
| Frame | Carbon technology frame, 150mm F.O.L.D. |
| Frame | GEN3 kinematics, 148×12 thru axle, internal cable routing, Post Mount 180 mm |
| Frame | FORK |
| Frame | DVO Diamond E3, 110×15 mm, 44 mm rake |
| Frame | TRAVEL OF SUSPENSION FORK |
| Frame | 160 mm |
| Frame | Rock Shox Deluxe Select+, 210/55 mm, hardware: 25.0 x 8.0 mm, no Bushing |
| Motor | Fazua Ride 60, 60 Nm, 430 W max. |
| Motor | BATTERY WATT-HOURS |
| Motor | 430 Wh |
| Motor | BATTERY AMPERE HOURS |
| Motor | 10 Ah |
| Motor | DISPLAY |
| Motor | SRAM SX Eagle, 12-speed |
| Motor | REAR DERAILLEUR |
| Motor | SRAM NX Eagle, 12-speed |
| Motor | Aluminium, 800 mm, rise: 30 mm, backsweep: 9° |
| Motor | 2.0 MTB integrated, 35 mm, aluminium |
| Motor | Post Moderne dropper post PM-MT171, 31.6 mm |
| Motor | BRAKE CALIPER |
| Motor | BRAKE LEVER |
| Motor | BRAKE |
| Tires | BATTERY KG. |
| Tires | 20.2 kg |
