Description

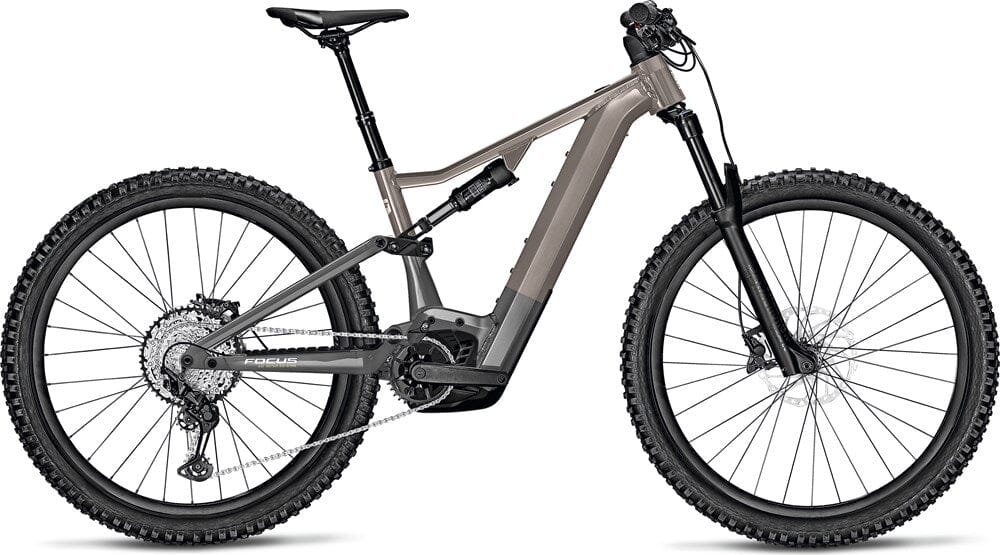

Focus Jam² 6.7 Electric Mountain Bike 625Wh
• Bosch Smart System with Performance CX E-drive, LED Remote, and 625 Wh Battery
• 150 mm Travel RockShox Recon RL Suspension Fork and 150 mm F.O.L.D.
Kinematics with RockShox Deluxe Select Rear Shock
• Reliable Shimano SLX 1×12 Shifting and Shimano 4-Piston Brakes
• Fully Integrated C.I.S.
Cable Routing
The JAM² 6.7 is equipped with powerful Bosch E-drive technology, offering smooth rides with a 625 Wh battery.
Its 150 mm travel suspension fork and F.O.L.D. kinematics provide great performance on various terrains.
The bike features reliable Shimano SLX 1×12 shifting and Shimano 4-Piston Brakes for precise control.
With fully integrated C.I.S. cable routing, this eMTB is designed for both performance and aesthetics.
SPECIFICATION
DETAILS
FRAME MATERIAL
Aluminium
FRAME
7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. kinematics, 148×12 mm thru axle, internal cable routing, post mount 203 mm
FORK
Rock Shox Recon Silver RL, eMTB, 110×15 mm, 51 mm rake
TRAVEL OF SUSPENSION FORK
150 mm
SHOCK
Rock Shox Deluxe Select, 210/50 mm, hardware: 25.0 x 8.0 mm
MOTOR
Bosch Performance CX Gen4, 85 Nm, 250 W
BATTERY WATT-HOURS
625 Wh
DISPLAY
Bosch LED Remote
SHIFTER
Shimano SLX M7100, 12-speed
REAR DERAILLEUR
Shimano SLX M7100, 12-speed
SPROCKET
Shimano SLX M7100, 12-speed
CHAIN
Shimano SLX CN-M7100, 12-speed
CRANKSET
FSA CK-320, aluminium
TRANSMISSION OF DRIVE
front: 34, rear: 10-51
BOTTOM BRACKET
Integrated in Drive Unit
HANDLEBAR
Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
STEM
FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
HEADSET
ACROS ZS56/ZS60 (ICR), FOCUS C.I.S.
Integrated angle headset
SADDLE
FOCUS Trail SL
SEATPOST
Post Moderne dropper post PM-214, 34.9 mm
BRAKE CALIPER
Shimano BR-MT520, 4 piston
BRAKE LEVER
Shimano BR-MT520
BRAKE
Disc
RIMS
RaceFace AR30 Offset
REAR HUB
Novatec D462SB, 12×148 mm
FRONT HUB
Novatec D041, 15×110 mm thru axle
TIRES
Maxxis Minion DHF, 2.6 3C EXO TR, 66-622
GEARS
12
BIKE WEIGHT INCL.
BATTERY IN KG.
24.9
SIZE
39, 42, 44, 46
Please note that the specifications are subject to change without notice, and the weight mentioned is for the size M variant.
