Description
The mountain bike that got a promotion.

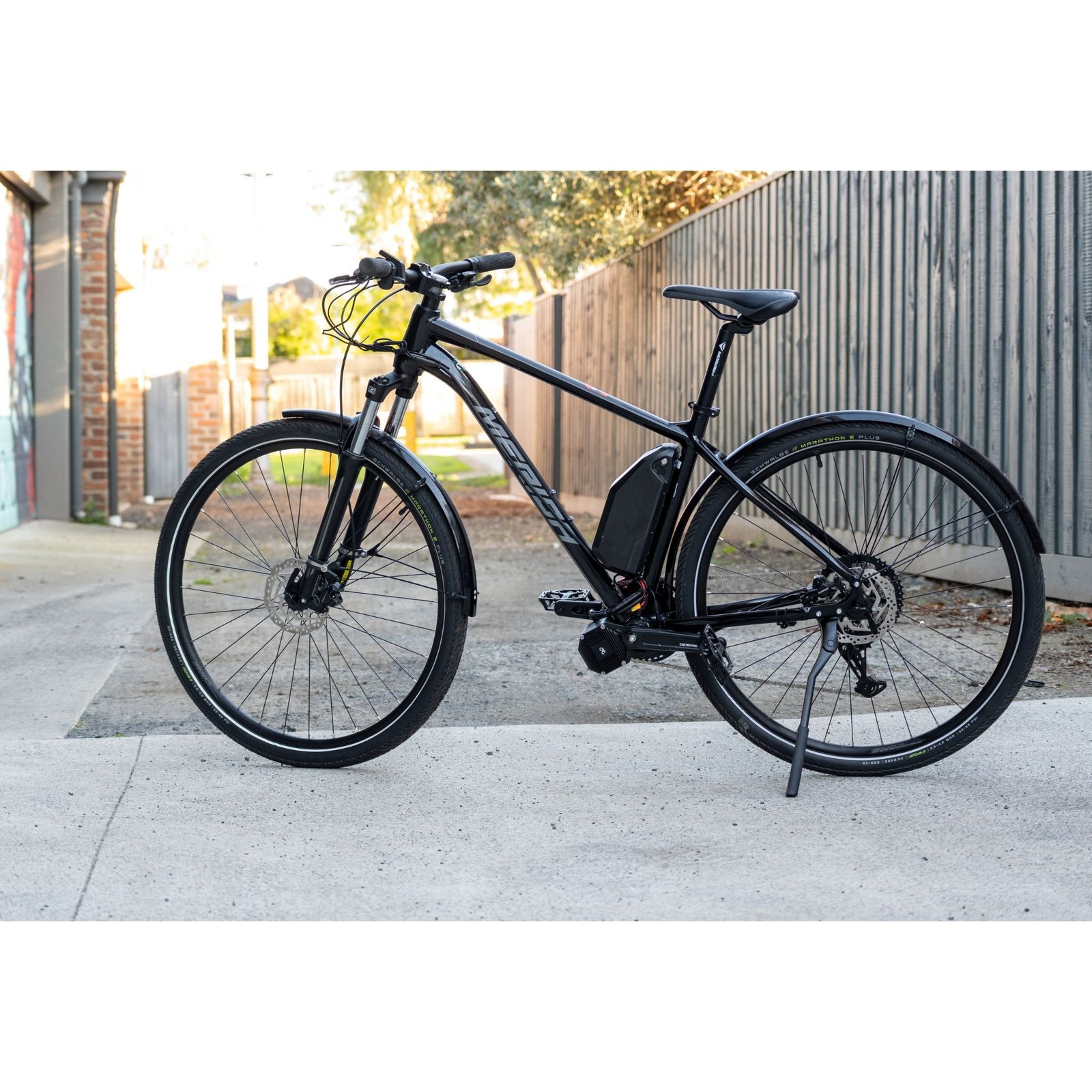

A Merida Big Nine 20 came into the workshop as a 29er hardtail.

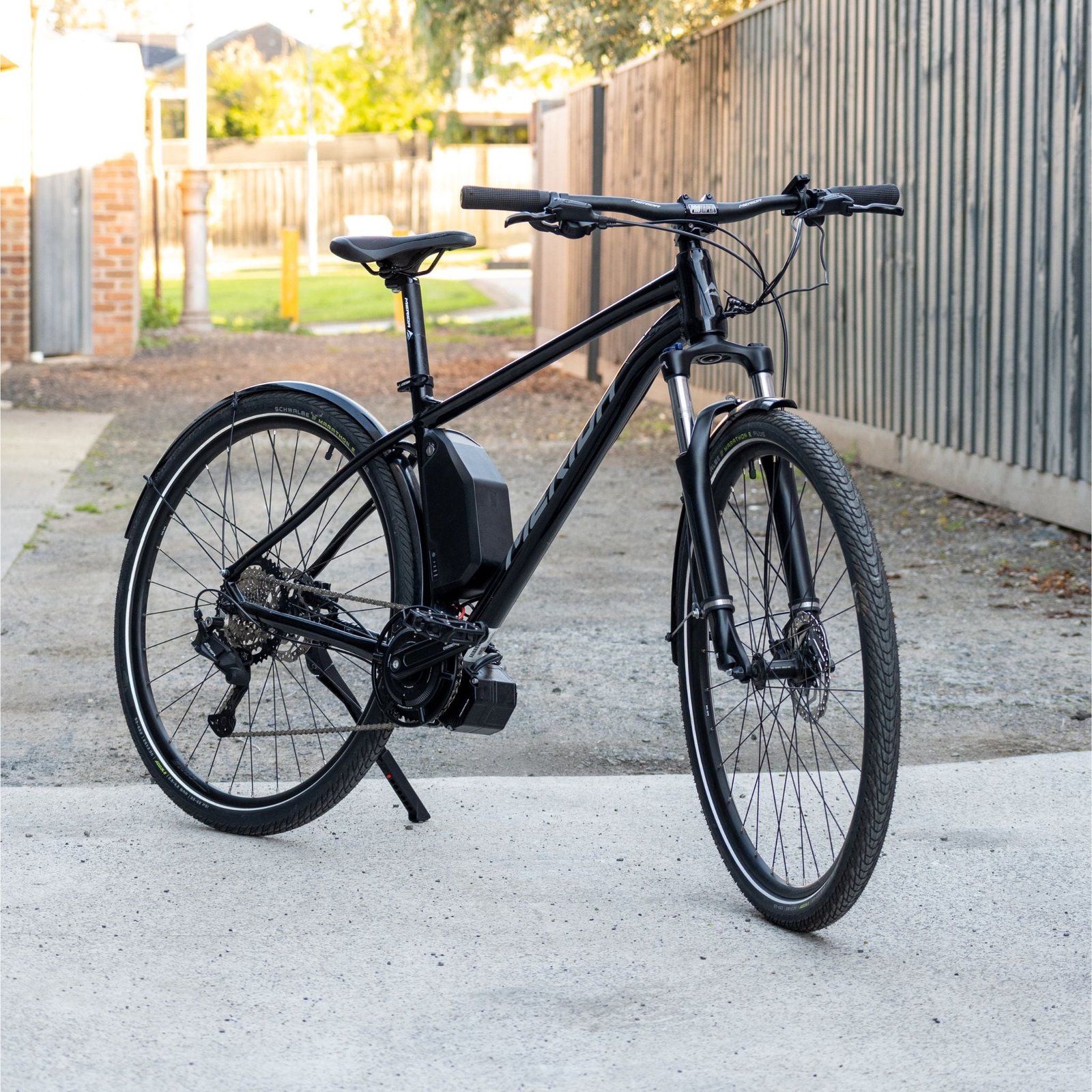

It left with a CYC Photon Gen 2 mid-drive, a 52V Samsung-cell battery, full-length mudguards and tyres that shrug off glass.
One only.
Why a mid-drive.
A hub motor drags a wheel around.
A mid-drive puts its power through the gears, so the motor works with the drivetrain instead of against it.
Hills flatten out, the bike still steers and balances like a bike, and you can swap a rear wheel without touching the electrics.

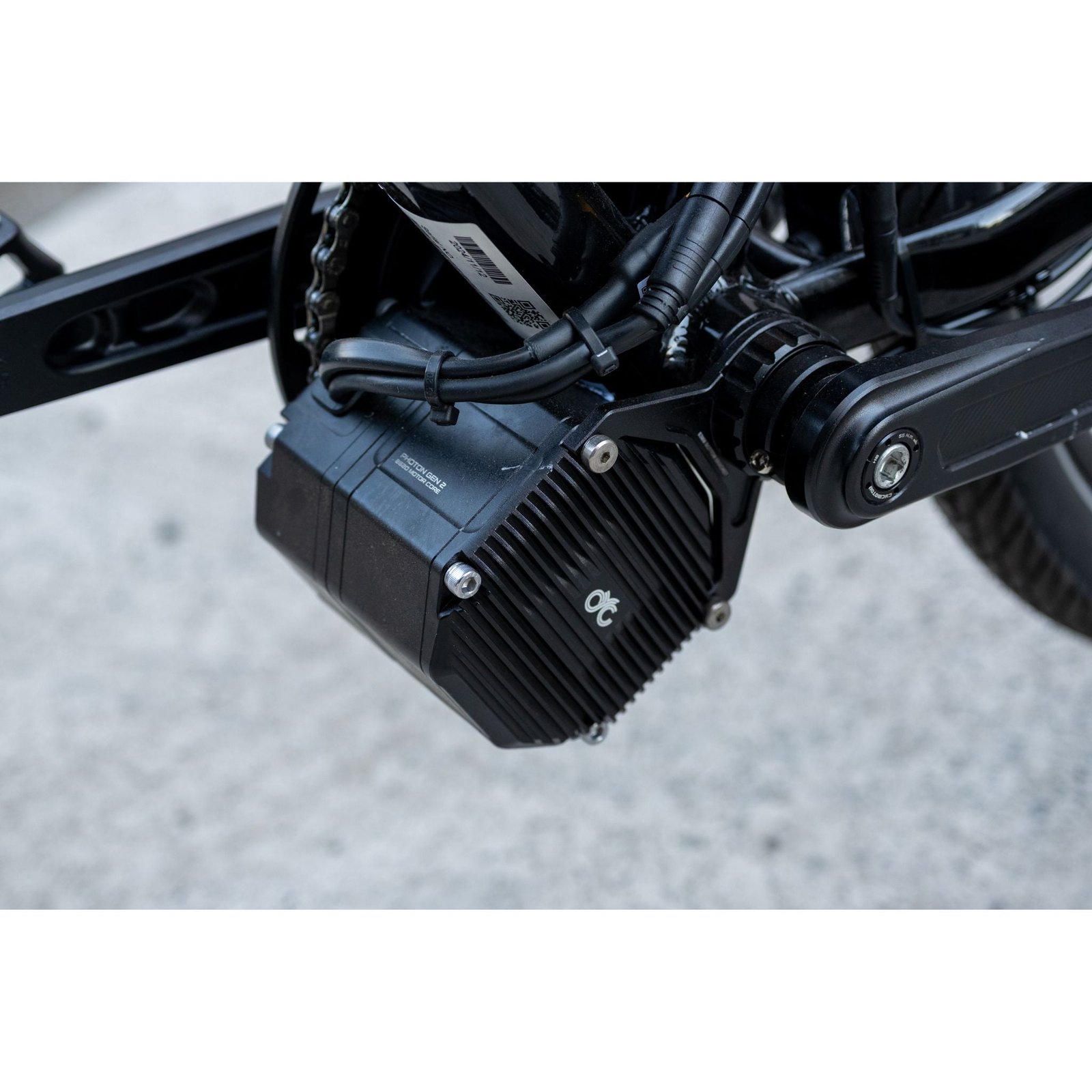

The Photon Gen 2 is the small motor that does not ride like one: 750W rated, 1200W peak, 130Nm at the crank, on a battery that bolts to the downtube where the weight belongs.
What we changed.

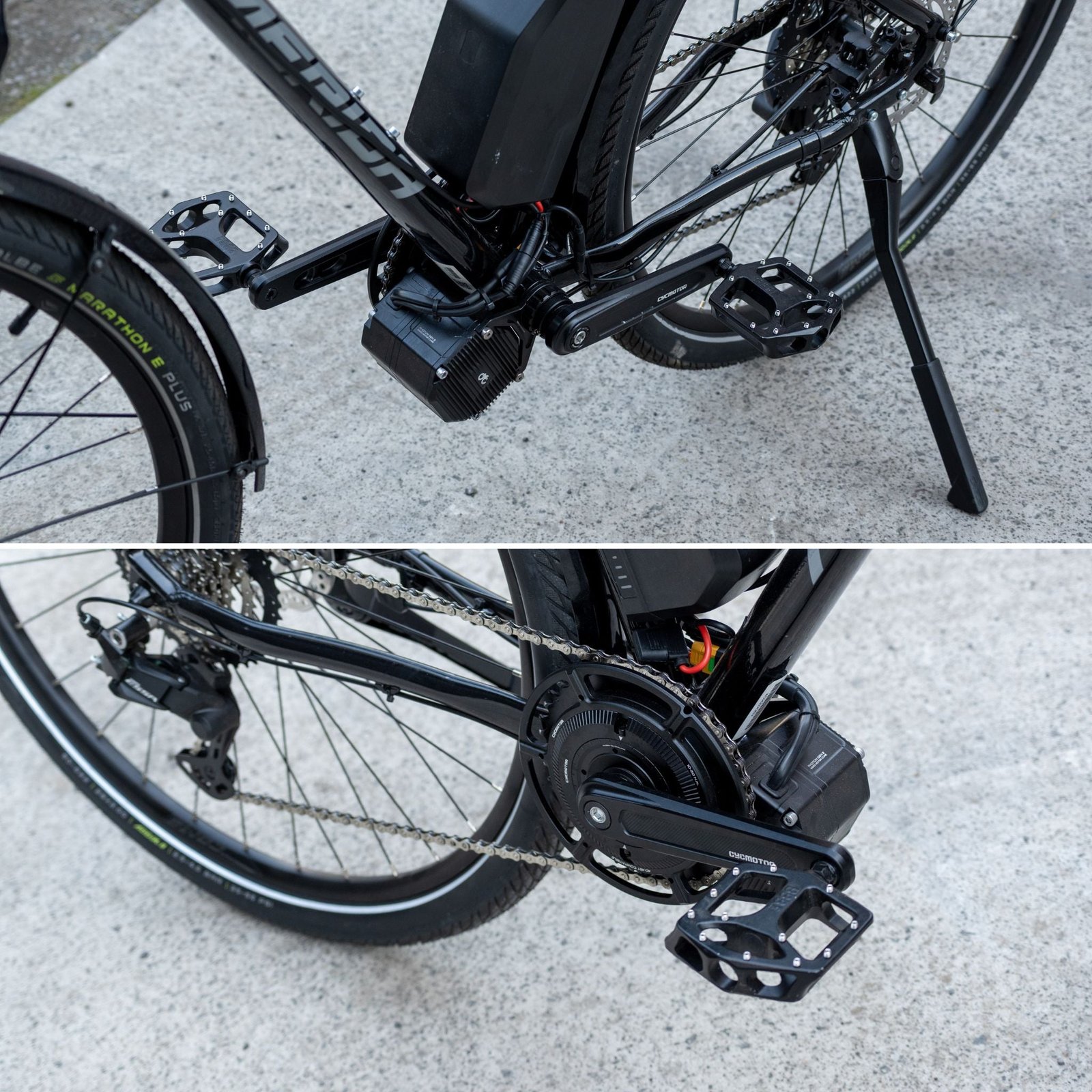

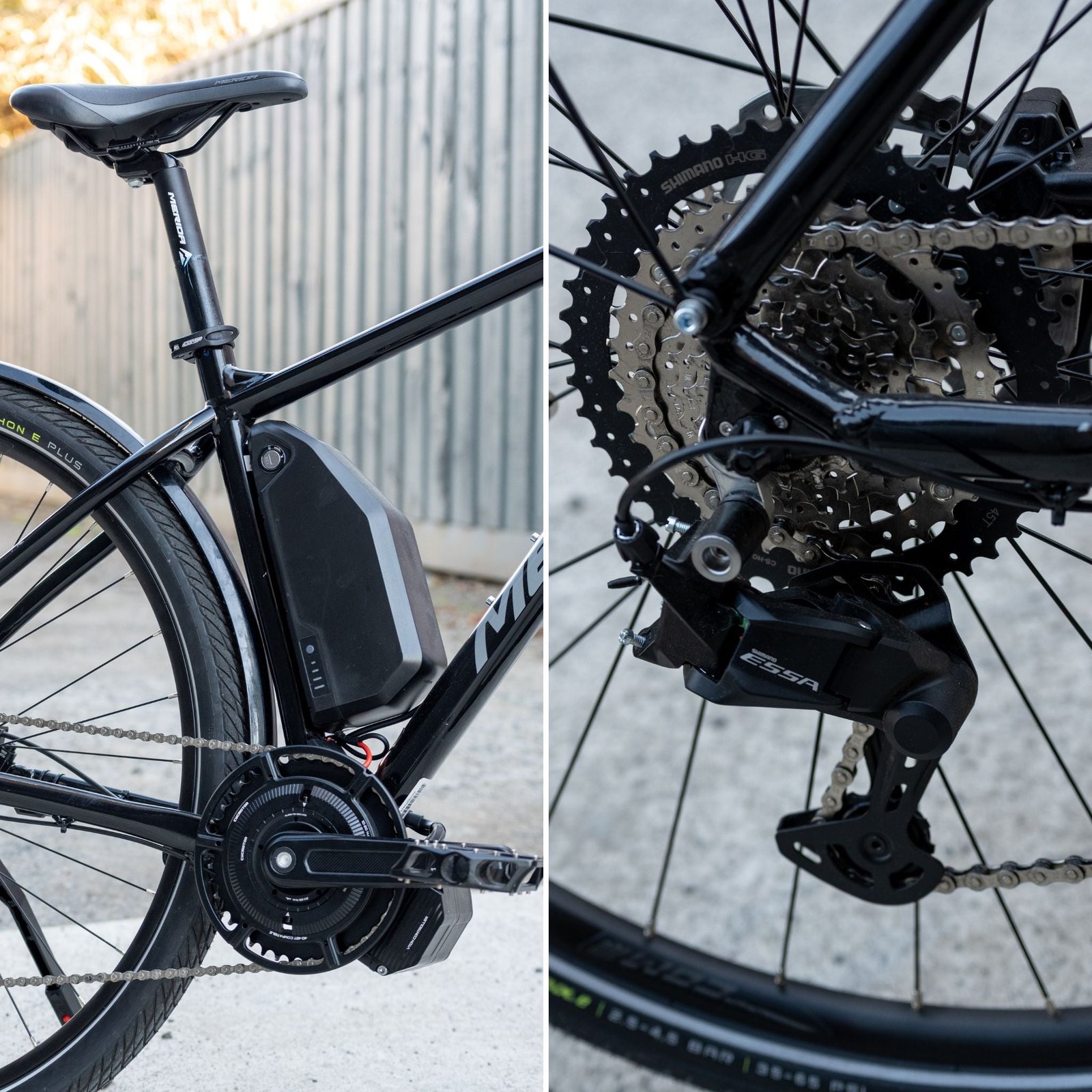

The stock Big Nine drivetrain went; a Photon needs its own chainring, cranks and bottom bracket, so it got them.
Schwalbe Marathon E-Plus tyres replaced the knobblies because a motor this strong deserves rubber rated for it.

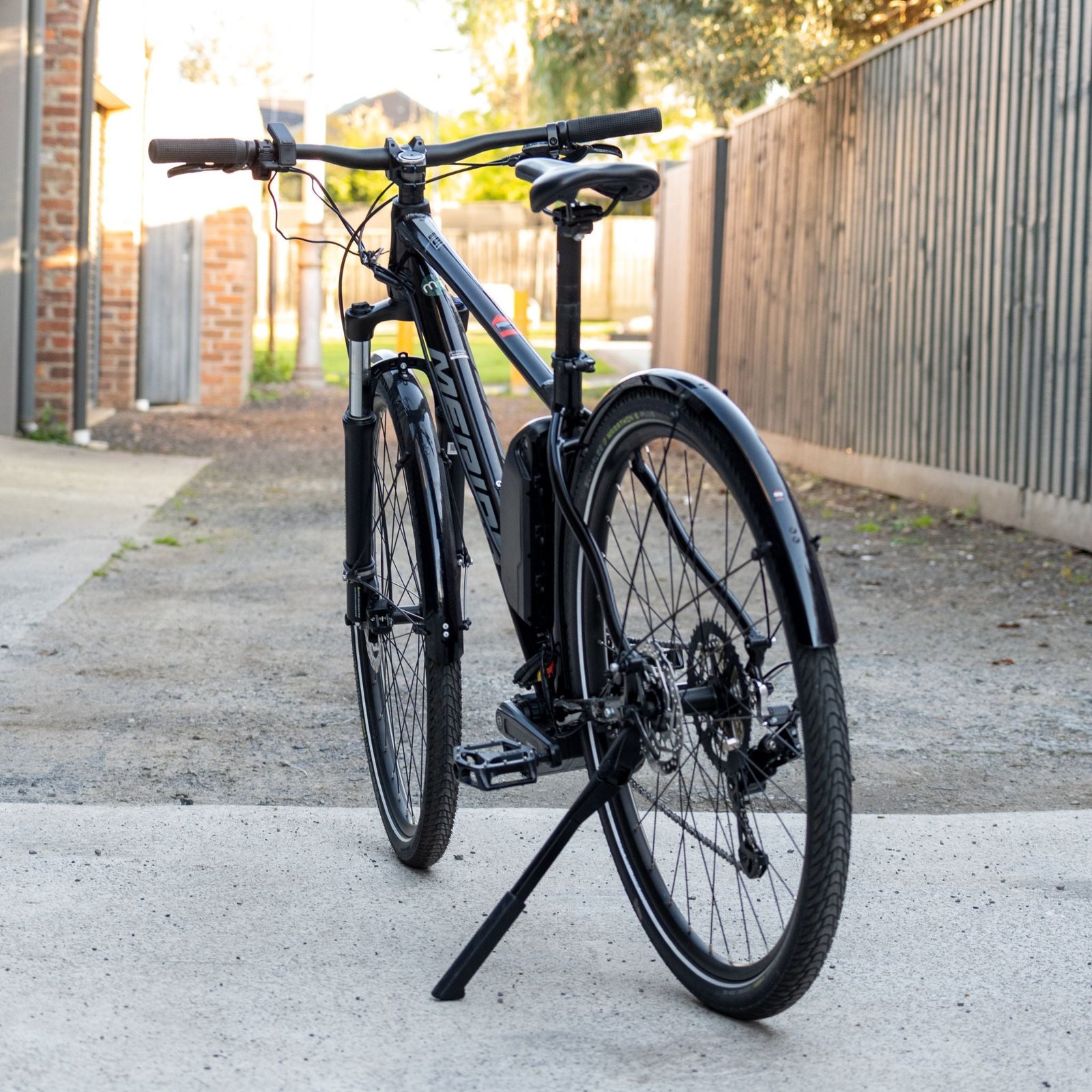

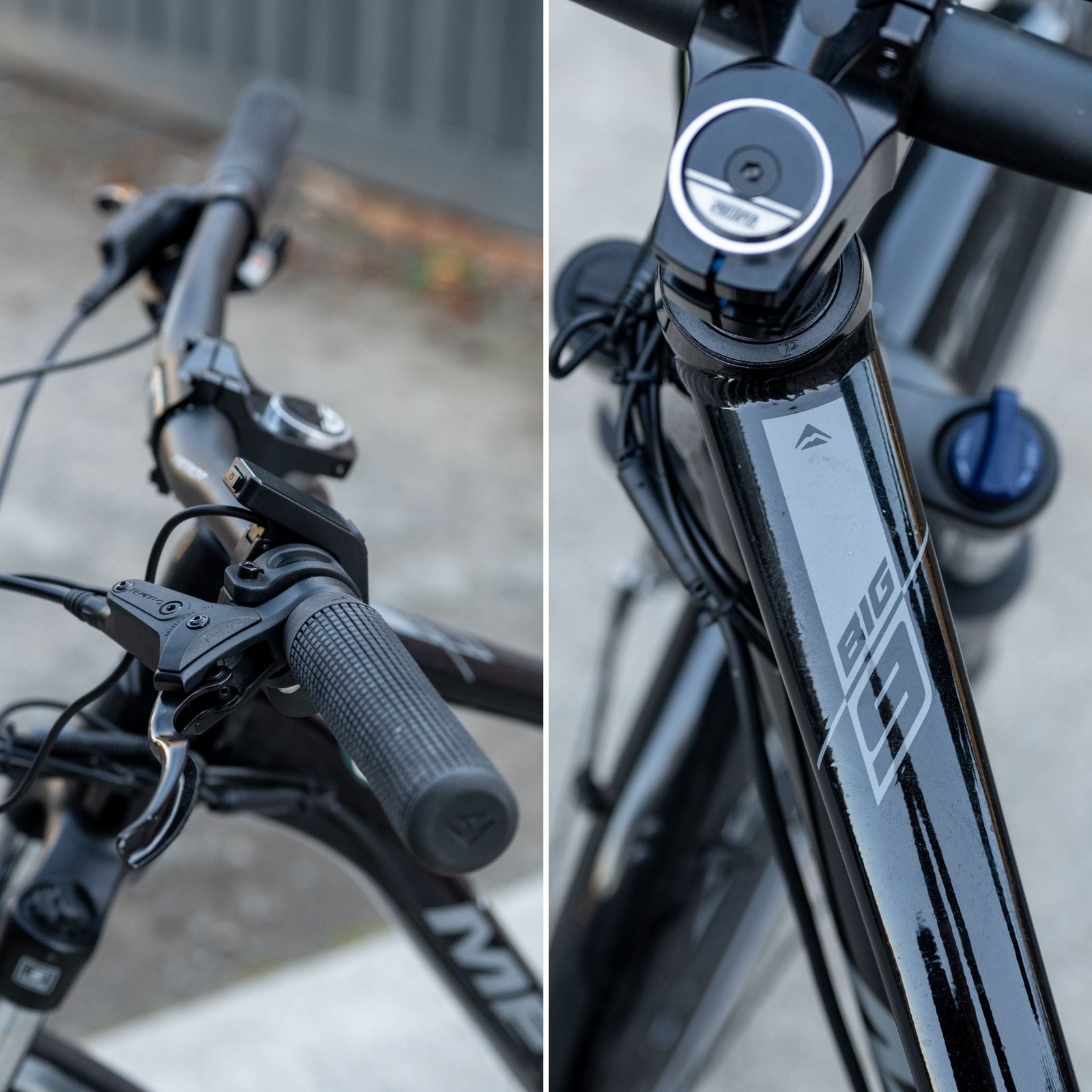

SKS Bluemels mudguards, a Focus kickstand, a shorter ProTaper stem and platform pedals finish the job.
Fresh Shimano resin pads in the brakes.
Then it was ridden, tested and tidied.
Build breakdown
•
Frame: Merida Big Nine 20, aluminium 29er hardtail, Large, Black/Grey
•
Fork: stock Merida, 120mm travel
•
Motor: CYC Photon Gen 2 mid-drive, 750W rated, 1200W peak, 130Nm
•

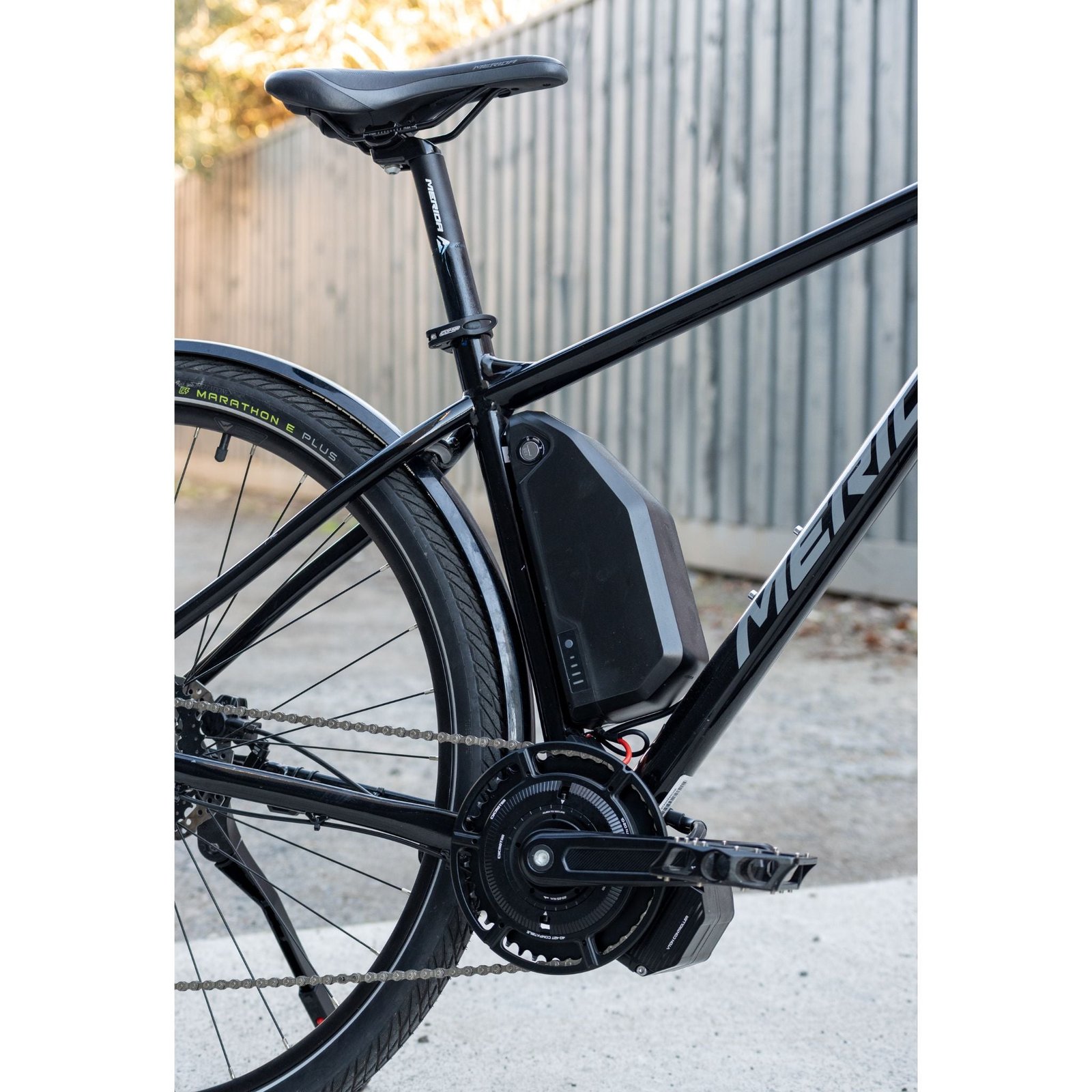

Battery: 52V 10Ah downtube, Samsung cells, 520Wh, charger included
•

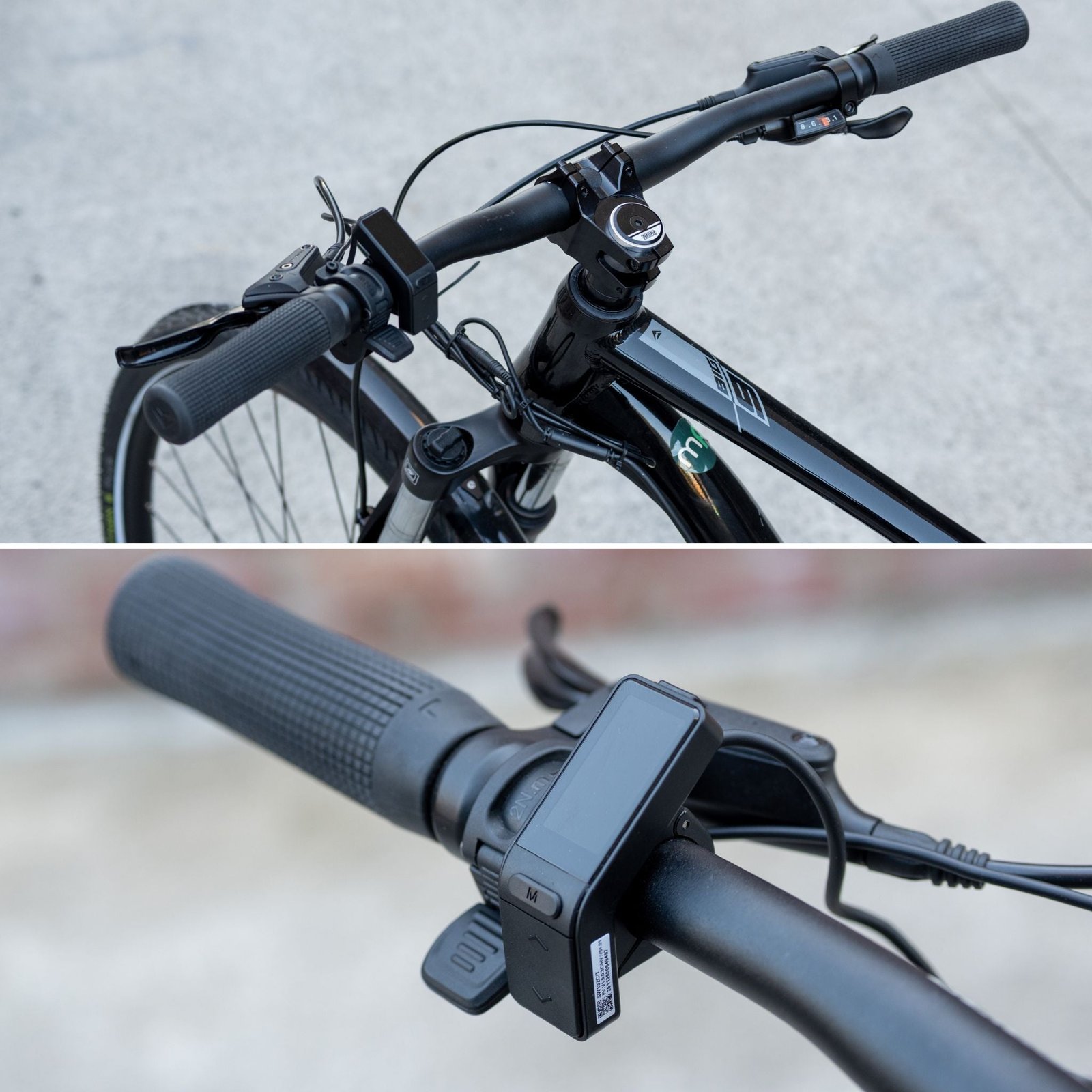

Display: CYC SW102T
•
Throttle: thumb throttle
•
Chainring: CYC Photon Gen 2, 42T
•
Cranks: CYC 165mm
•
Bottom bracket: CYC Photon kit, 68/73/83mm
•
Chain: KMC X8
•
Tyres: Schwalbe Marathon E-Plus, 29″ x 2.00″, front and rear
•
Mudguards: SKS Bluemels 60mm
•

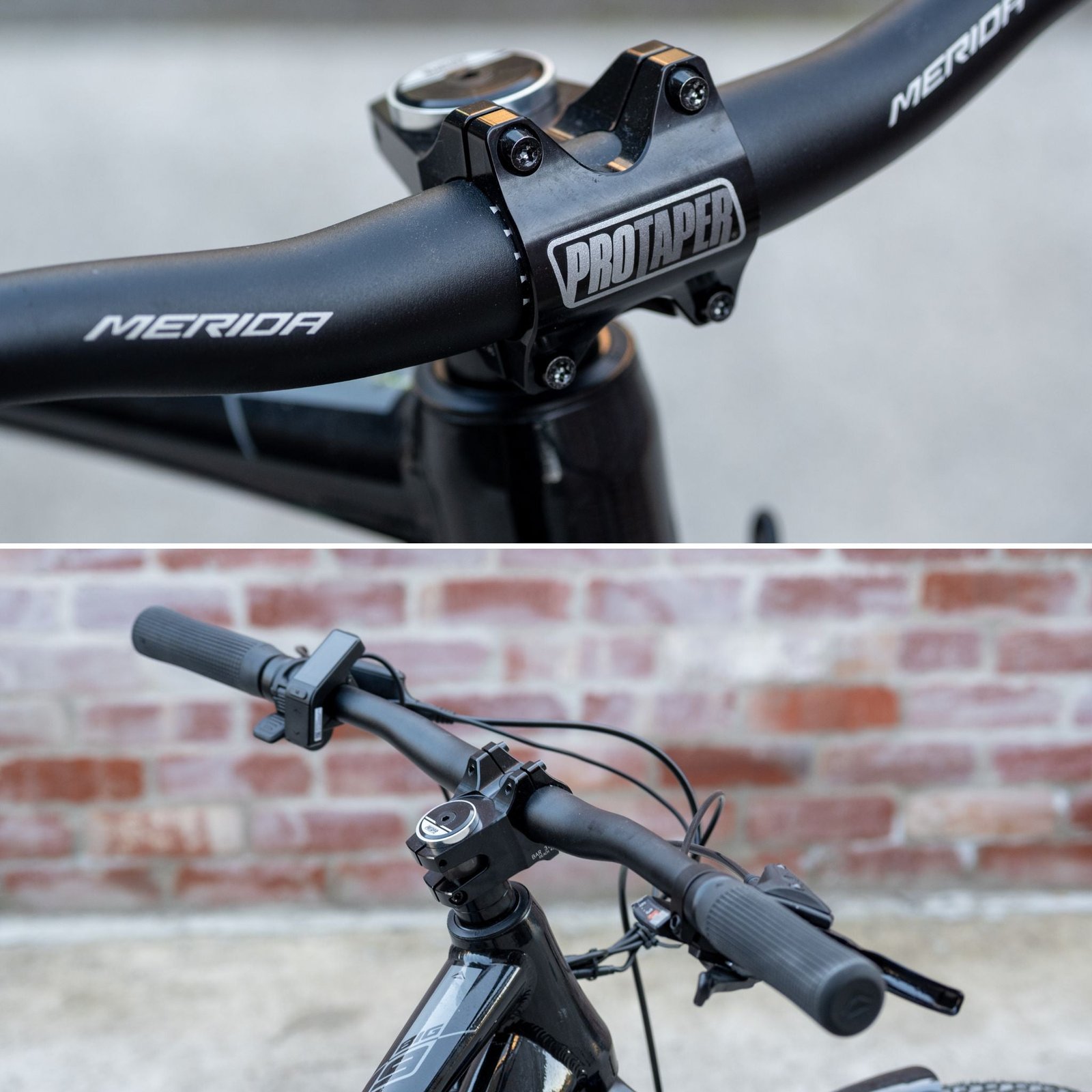

Stem: ProTaper 31.8 x 45mm, Stealth
•
Pedals: BBB Mountainhigh BPD-32
•
Kickstand: Focus
•
Brake pads: Shimano B03S resin
•
Everything else: stock Merida, checked and set up in the workshop
Want one built around your bike?
This is one of the conversions we do.
Product specifications
| Specification | Details |
|---|---|
| Specification | It left with a CYC Photon Gen 2 mid-drive, a 52V Samsung-cell battery, full-length mudguards and tyres that shrug off glass. |
| Specification | The Photon Gen 2 is the small motor that does not ride like one: 750W rated, 1200W peak, 130Nm at the crank, on a battery that bolts to the downtube where the weight belongs. |
| Fork | stock Merida, 120mm travel |
| Motor | CYC Photon Gen 2 mid-drive, 750W rated, 1200W peak, 130Nm |
| Battery | 52V 10Ah downtube, Samsung cells, 520Wh, charger included |
| Display | CYC SW102T |
| Throttle | thumb throttle |
| Specification | Cranks: CYC 165mm |
| Specification | Bottom bracket: CYC Photon kit, 68/73/83mm |
| Chain | KMC X8 |
| Tyres | Schwalbe Marathon E-Plus, 29" x 2.00", front and rear |
| Specification | Mudguards: SKS Bluemels 60mm |
| Specification | Stem: ProTaper 31.8 x 45mm, Stealth |
| Specification | The Photon Gen 2 comes as a factory 250W road-legal unit. |
