Description

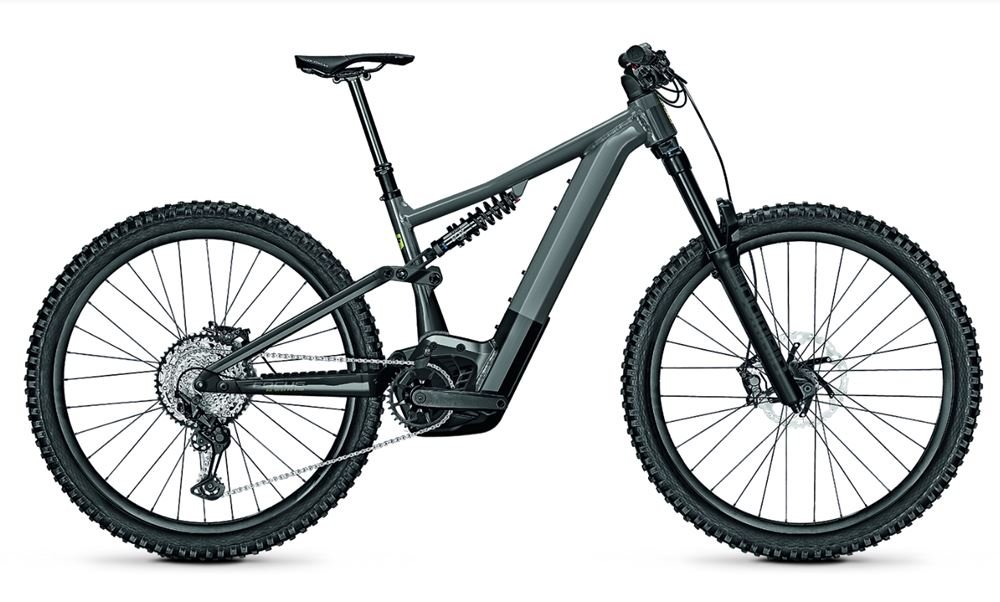

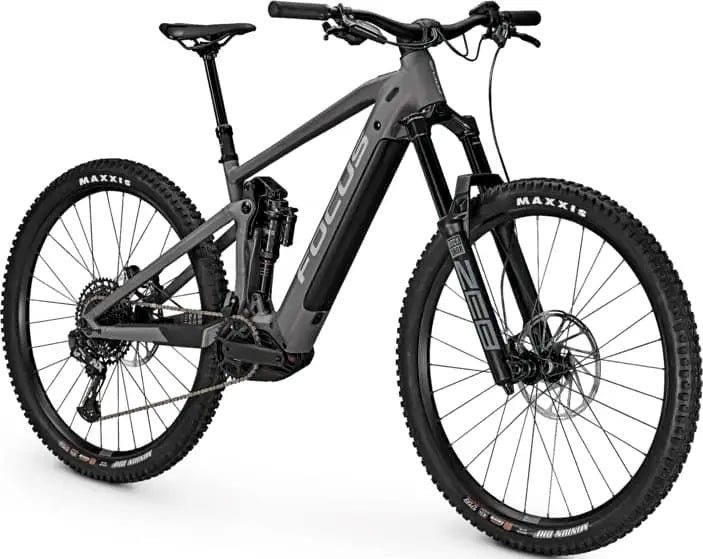

Focus Sam² 6.7 Electric Mountain Bike 625Wh
• Bosch Smart System with Performance CX E-drive and LED Remote Plus 625 Wh Battery
• 180 mm Travel SR Suntour Durolux 38 Suspension Fork and 170 mm F.O.L.D.
Kinematics with RockShox Deluxe Select Coil Rear Shock
• Fully Integrated C.I.S.
Cable Routing with Trail-Ready SRAM NX Eagle Shifting and SRAM DB8 4-Piston Brakes
With the FOCUS SAM² 6.7, you get a powerful eMTB designed to handle rough trails, offering stability, great performance, and easy handling in various riding conditions.
The integrated Bosch Smart System and the Focus Optimized Linkage Design make it a top choice for mountain biking enthusiasts seeking a high-performance electric mountain bike

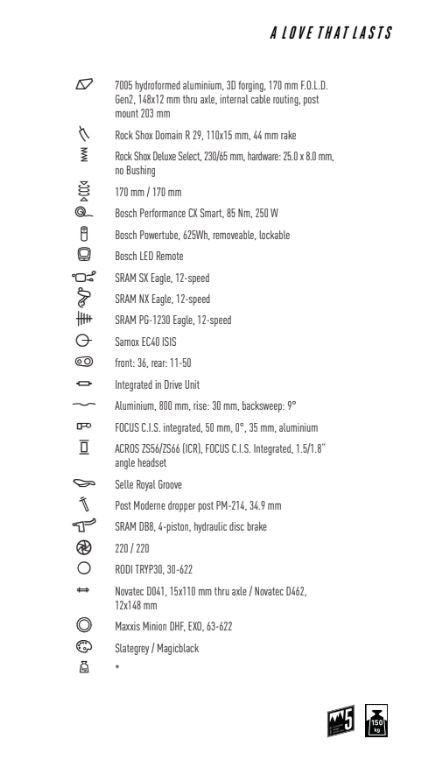

SPECIFICATION
DETAILS
FRAME
7005 hydroformed aluminum, 3D forging, 170 mm F.O.L.D.
Gen2, 148×12 mm thru axle, internal cable routing, post mount 203 mm
FORK
SR Suntour Durolux 38, RC2 29, 110×15 mm, 44 mm rake
TRAVEL OF SUSPENSION FORK
180 mm
SHOCK
Rock Shox Deluxe Select, 230/65 mm, hardware: 25,0 x 8.0 mm, no Bushing
MOTOR
Bosch Performance CX Gen4, 85 Nm, 250 W
BATTERY WATT-HOURS
625 Wh
BATTERY AMPERE HOURS
17,4 Ah
DISPLAY
Bosch LED Remote
SHIFTER
SRAM SX Eagle, 12-speed
REAR DERAILLEUR
SRAM NX Eagle, 12-speed
SPROCKET
SRAM PG-1230 NX Eagle, 12-speed
CHAIN
SRAM SX Eagle, 12-speed
CRANKSET
Samox EC40 ISIS
TRANSMISSION OF DRIVE
front: 36, rear: 11-50
BOTTOM BRACKET
Integrated in Drive Unit
HANDLEBAR
Aluminum, 800 mm, rise: 30 mm, backsweep: 9°
STEM
FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminum
HEADSET
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S.
Integrated, 1.5/1.8″ angle headset
SADDLE
Selle Royal Groove
SEATPOST
Post Moderne dropper post PM-214, 34.9 mm
BRAKE CALIPER
SRAM DB8, 4-piston, hydraulic disc brake
BRAKE LEVER
SRAM DB8, 4-piston, hydraulic disc brake
BRAKE
Disc
RIMS
RODI TRYP30, 30-622
REAR HUB
Novatec D462, 12×148 mm
FRONT HUB
Novatec D041, 15×110 mm thru axle
TIRES
Maxxis Minion DHF, EXO, 63-622
GEARS
12
BIKE WEIGHT INCL.
BATTERY IN KG.
25
SIZE
39, 42, 44, 46
Product specifications
| Specification | Details |
|---|---|
| Size | Medium, Large, X-Large, Small |
| Colour | Slate grey |
| Feature | Bosch Smart System with Performance CX E-drive and LED Remote Plus 625 Wh Battery |
| Feature | 180 mm Travel SR Suntour Durolux 38 Suspension Fork and 170 mm F.O.L.D. |
| Frame | 7005 hydroformed aluminum, 3D forging, 170 mm F.O.L.D., Gen2, 148×12 mm thru axle, internal cable routing, post mount 203 mm |
| Fork | SR Suntour Durolux 38, RC2 29, 110×15 mm, 44 mm rake |
| Fork travel | 180 mm |
| Rear shock | Rock Shox Deluxe Select, 230/65 mm, hardware: 25,0 x 8.0 mm, no Bushing |
| Motor | Bosch Performance CX Gen4, 85 Nm, 250 W |
| Battery capacity | 625 Wh |
| Battery amp hours | 17.4 Ah |
| Display | Bosch LED Remote |
| Shifter | SRAM SX Eagle, 12-speed |
| Rear derailleur | SRAM NX Eagle, 12-speed |
| Cassette | SRAM PG-1230 NX Eagle, 12-speed |
| Chain | SRAM SX Eagle, 12-speed |
| Crankset | Samox EC40 ISIS |
| Gearing | front: 36, rear: 11-50 |
| Bottom bracket | Integrated in Drive Unit |
| Handlebar | Aluminum, 800 mm, rise: 30 mm, backsweep: 9° |
| Stem | FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminum |
| Headset | ACROS ZS56/ZS66 (ICR), FOCUS C.I.S., Integrated, 1.5/1.8" angle headset |
| Saddle | Selle Royal Groove |
| Seatpost | Post Moderne dropper post PM-214, 34.9 mm |
| Brakes | SRAM DB8, 4-piston, hydraulic disc brake |
| Brake levers | SRAM DB8, 4-piston, hydraulic disc brake |
| Rims | RODI TRYP30, 30-622 |
| Rear hub | Novatec D462, 12×148 mm |
| Front hub | Novatec D041, 15×110 mm thru axle |
| Tires | Maxxis Minion DHF, EXO, 63-622 |
| Gears | 12-speed |
| Weight incl. battery | 25 kg |
| Frame sizes | 39, 42, 44, 46 cm |
